Hypoid

Heavy Duty right angel Hypoid gearbox
Black coated steel housing, aluminum output and motor adapter flange
Steel output shaft, flange ISO 9409
Helical gear technology
Nominal Torques:
- T_2N : 55 Nm - 6,965 Nm
Ratios
- 3-stage : 64 / 84 / 100 / 125 / 140 / 175 / 200 / 250 / 280 / 350 / 400 / 500 / 700 / 1,000
Low Backlash
- 3-traps : ≤ 2 arcmin
High Efficiency
- 3-stage : ≥ 92%
Easy mount
Low noise
Compact structure
Sizes available: AHKB090 / AHKB110 / AHKB140 / AHKB200 / AHKB255 / AHKB285 / AHKB355

AHK serie tandwielkast met uitgaande flens ISO 9409 Apex Dynamics

Brochure Mounting instructions User manual Order code Optimum gearbox

Model		Stage	Ratio¹	AHKB090	AHKB110	AHKB140	AHKB200	AHKB255	AHKB285	AHKB355
Nominal output torque T_2N	Nm	3	64	205	415	840	1,545	-	-	-
			85	200	420	845	1,555	-	-	-
			100	205	420	845	1,565	2,085	3,830	6,745
			125	200	365	730	1,355	2,095	3,850	6,785
			140	205	425	845	1,580	1,750	3,860	6,805
			175	205	365	740	1,370	2,115	3,885	6,845
			200	205	430	845	1,590	1,780	3,900	6,865
			250	205	370	745	1,380	2,135	3,920	6,905
			280	200	400	800	1,560	1,780	-	-
			350	210	375	755	1,395	1,950	3,750	6,965
			400	160	340	680	1,440	-	-	-
			500	200	380	760	1,405	1,800	3,000	5,500
			700	135	325	670	1,240	1,875	3,005	6,060
			1,000	55	160	380	660	1,065	1,725	3,325
Emergency stop torque T_2NOT	Nm	3	64~1,000	2 times nominal output torque T_2N
Max. Acceleration torque T_2B	Nm	3	64~1,000	1,5 times nominal output torque T_2N
No load running torque ⁽²⁾	Nm	3	64~1,000	0.2	0.2	0.3	0.4	1	1.2	1.5
Backlash ⁽³⁾	arcmin	3	64~1,000	≤ 2	≤ 2	≤ 2	≤ 2	≤ 2	≤ 2	≤ 2
Torsional rigidity	Nm/ arcmin	3	64~1,000	27	56	112	389	642	1,275	2,500
Nominal input speed N_1N	rpm	3	64~1,000	5,500	4,600	4,600	4,000	3,700	3,400	3,100
Max. input speed N_1B	rpm	3	64~1,000	7,000	7,000	7,000	6,000	5,500	5,000	4,500
Max. radial load F_2a ⁽⁴⁾	N	3	64~1,000	2,220	4,070	8,530	17,000	26,900	39,200	101,500
Max. Tilting moment M_2k ⁽⁴⁾	Nm	3	64~1,000	280	480	1,310	3,530	5,920	9,230	29,100
Operating temperature	ºC	3	64~1,000	-10ºC ~+ 90ºC
Degree of Protection		3	64~1,000	IP65
Lubrication		3	64~1,000	Synthetisch lubrication grease
Mounting position		3	64~1,000	All directions
Running noise ⁽³⁾	dB(A)	3	64~1,000	≤ 66	≤ 68	≤ 68	≤ 70	≤ 70	≤ 72	≤ 74
Efficiency	%	3	64~1,000	≥ 92 %

1. Ratio ( i = N in / N out )
2. Backlash is measured at 2% of Nominal output torque T2N.
3. These values are measured by gearbox with ratio = 10 (1-stage) or ratio = 100 (2-stage) at 3.000 rpm without load.
4. Applied to the ourput flange center at 100 rpm.
5. Continuous operation is not recommended

Download as PDF

Model		AHKB090	AHKB110	AHKB140	AHKB200	AHKB255	AHKB285	AHKB355
Ø ⁽¹⁾ (C3)		3-st.	3-st.	3-st.	3-st.	3-st.	3-st.	3-st.
8	kg*cm²	0,17	-	-	-	-	-	-
11		0,17	0,52	-	-	-	-	-
14		0,21	0,53	1,83	-	-	-	-
19		-	0,68	1,83	5,60	-	-	-
24		-	-	5,04	5,63	5,63	-	-
28		-	-	-	7,18	7,18	-	-
32		-	-	-	10,10	10,10	12,63	-
35		-	-	-	15,54	15,54	17,75	17,35
38		-	-	-	21,32	21,32	23,26	23,61
42		-	-	-	-	23,20	25,40	25,50
48		-	-	-	-	56,07	61,02	61,22

(1) ø = Input shaft diameter

Download as PDF

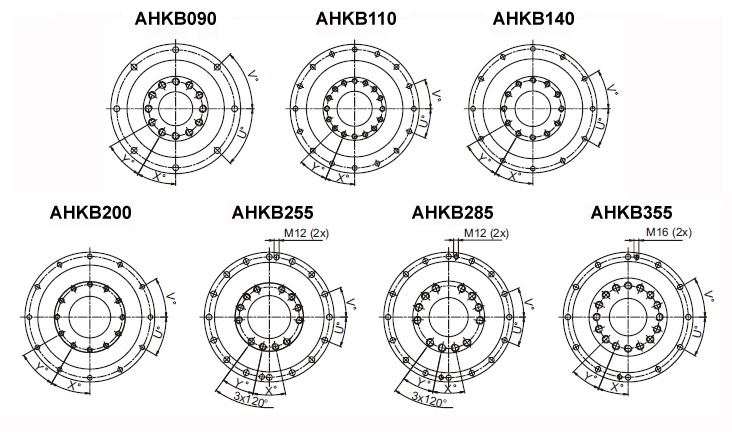

AHKB 3-stage series:

Afmetingen	AHKB090	AHKB110	AHKB140	AHKB200	AHKB255	AHKB285	AHKB355
D1 H7	31,5	40	50	80	100	100	120
D2	50	63	80	125	140	160	200
D3 h7	63	80	100	160	180	200	250
D4 h7	90	110	140	200	255	285	355
D5	109	135	168	233	280	310	385
D6 x spoed x diepte	M6 x 1P x 10	M6 x 1P x 11	M8 x x1.25P x15	M10 x 1.5P x 20	M16 x 2P x 25	M20 x 2.5P x 31	M24 x 3P x 32
D7	120	147	180	249,5	302	332	415
D8	5,5	5,5	6,6	9	13,5	13,5	17,5
D9	94	116	163	210	210	255	300
L1	15	15	15	16	16	16	35
L2	30	29	38	50	66	75	80
L3	7	7	7,5	8,5	13,5	16,5	20
L4	7	8	10	12	18	20	45
L5	13	17	25	31	31	36	43
L6	90,5	114	147,5	175	191,5	249,5	290
L7	53	68,3	89	115	115	131	165
L8	173,5	211,3	274,5	340	372,5	455,5	535
L9	114,5	129	173,5	228	228	265,5	294,5
X in degrees	30	22,5	30	30	24	24	22,5
Y in degrees	30	22,5	30	30	24	24	22,5
Z	12	16	12	12	12	13	16
U in degrees	45	22,5	30	30	22,5	22,5	30
V degrees	45	22,5	30	30	22,5	22,5	30
W	8	16	12	12	16	16	12
